Deltek CostPoint is an ERP software solution designed for government contractors. It enables users to manage project accounting, labor management, manufacturing, and business intelligence. Modules include payroll, budgeting and planning, reporting, human resources and benefits, manufacturing and compliance, subcontractor management, time and expense, contract management, and enterprise insights for planning and forecasting.

Identities ❌ | Accounts ✔️ | Groups ✔️ | App Roles ❌ | Entitlements ❌

Application​

The first step in collecting accounts, tokens information from Deltek CostPoint is to create a placeholder application to store this information in RSA Governance & Lifecycle.

Steps

  1. Login to RSA G&L console as System Administrator.
  2. Navigate to Resources > Application.
  3. Click on Create Application and select Other Application.

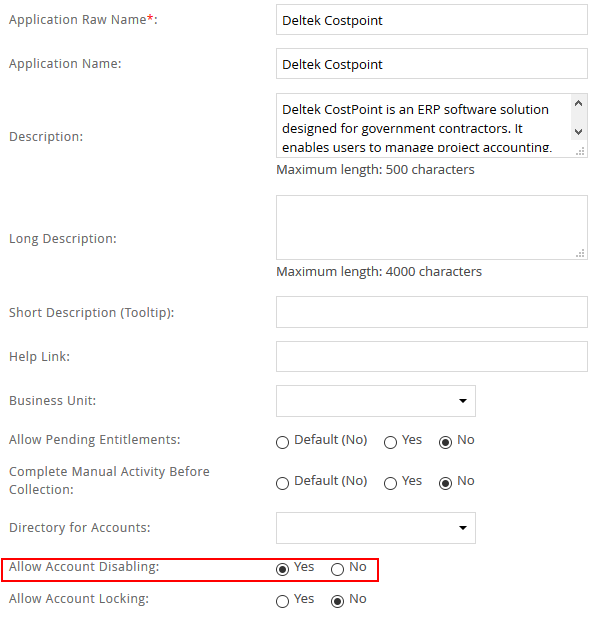

  4. Enter the details as shown below.
  5. Click Finish.

Account Collector​

This section explains the process for configuring an account collector for the Deltek Costpoint application. We will use the SQL Server database collector for this purpose.

Steps

  1. Login to RSA G&L console as System Administrator.
  2. Navigate to Resources > Applications.
  3. Click on Deltek CostPoint.

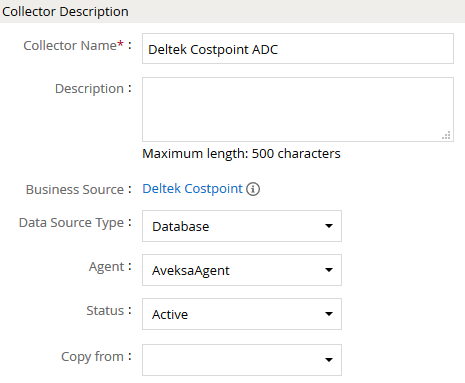

  4. Navigate to Collectors tab and click on Create Account Collector. Enter the details as shown below.

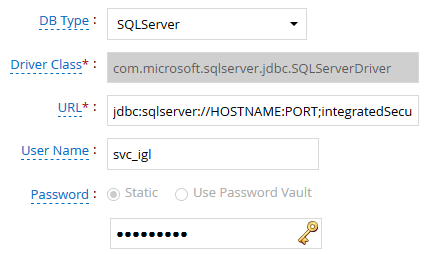

  5. Click Next and enter the database details. Use the Test Connection to make sure the connection details are accurate. Use the latest Microsoft JDBC Driver for SQL Server if NTLM authentication is required.

  6. Click Next. Select the appropriate data that you intend to collect.

  7. Click Next. On the Account Data page, enter the following query to collect account information.
SELECT
  DISTINCT users.USER_ID as accountName,
  user_details.NAME as displayname,
  user_details.EMPL_ID as employeeID,
  user_details.LAST_PSWD_CHNG_DT as passwordChangeDate,
  CASE WHEN user_details.DE_ACTIVATION_DT IS NULL
    THEN 0 ELSE 1
  END as isDisabled,
  user_details.LAST_LOGIN_DT as lastLogin,
  company.ORG_SEC_GRP_CD as company
FROM
  CPADMIN.W_USER_GRP_USERS users
  JOIN CPADMIN.W_USER_UGRP_LIST user_details
    ON users.USER_ID = user_details.SEC_OBJ_ID
  JOIN CPADMIN.W_USER_COMPANY company
    ON users.USER_ID = company.USER_ID‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

The following are the important attributes

8. Click Next. On the User Account Mappings Data configuration page enter the following query to map the Deltek CostPoint account to user identity.

select
  CPADMIN.W_USER_GRP_USERS.USER_ID as accountName,
  CPADMIN.W_USER_GRP_USERS.USER_ID as userID
from
  CPADMIN.W_USER_GRP_USERS‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

The following are the important attributes

9. Click Next. In the Group Data configuration section enter the following query to collect groups from Deltek CostPoint.

SELECT
  DISTINCT SEC_OBJ_ID as groupID,
  NAME as groupName
FROM
  CPADMIN.W_USER_UGRP_LIST groups
WHERE
  TYPE = 'G'

The following are the important attributes

10. In the Account Membership Data configuration section enter the following query to collect groups membership information from Deltek CostPoint.

SELECT
  groups.NAME as groupName,
  groups.SEC_OBJ_ID as groupID,
  users.USER_ID as accountName
FROM
  CPADMIN.W_USER_GRP_USERS users
  INNER JOIN CPADMIN.W_USER_UGRP_LIST groups
    ON groups.SEC_OBJ_ID = users.SEC_OBJ_ID
WHERE
  groups.TYPE = 'G'
  1. Click Next. In the User Resolution Rules, map the user to account

  2. Click Next. In the Member Account Resolution Rules, map the account collector.

  3. Click Finish. Use the Test function to make sure the configurations are accurate.
